Technical manual summary

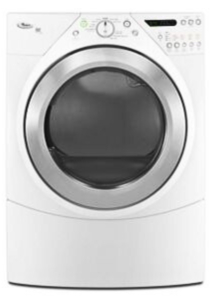

The WED9500TW1 and WED9500TC1 source pages carried the same W10177456A sheet. This reference retains both original illustrations while providing one 12-page reader.
The sheet separates diagnostic-mode observations from fault codes and individual circuit tests. Console response, door and moisture-sensor input, motor operation and temperature sensing each have their own place in the assessment.
Heater testing branches for electric and gas equipment, followed by thermistor, gas-valve and sensor information. Check the actual fuel type, controls and supplied tech-sheet revision before using these references; the old page associations do not establish exact applicability.
Airflow, connection condition and protection of sensitive electronics belong in the service assessment as described in the original sheet. This overview keeps those topics with the full tests instead of turning individual readings into a universal parts-replacement rule.
Confirm the complete model, control layout and document revision against the literature supplied with the appliance. This document is intended for service technicians.
Document references
Use the document number and the complete appliance model together when locating service literature. A family name or a similar exterior appearance is not enough to confirm a technical-document match.
For owner instructions, use Whirlpool’s manual lookup with the complete model from the appliance label.
