Technical manual summary
This 60-page bilingual sheet contains Whirlpool console illustrations, a diagnostic menu and separate interface, loads and installation checks. The document number and revision are the most useful identifiers when comparing it with the sheet supplied in an appliance.
The fault tables lead into control-power, motor and heating-system tests. Moisture sensing, thermistors and optional drum-light or water-valve functions appear separately, so a feature shown in the family sheet should not be assumed to exist on every dryer.

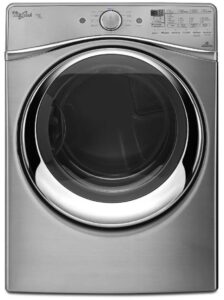

The former YWED97HEDU0 and YWED97HEDBD0 pages attached identical files. Their reader is consolidated here, with both illustrations retained and exact model/revision applicability left explicit.
The preliminary service guide also considers vent restrictions and electronic-component handling. Those checks remain part of the full document, alongside the linked heating and sensing sections.
Confirm the complete model, control layout and document revision against the literature supplied with the appliance. This document is intended for service technicians.
Document references
Use the document number and the complete appliance model together when locating service literature. A family name or a similar exterior appearance is not enough to confirm a technical-document match.
For owner instructions, use Whirlpool’s manual lookup with the complete model from the appliance label.
